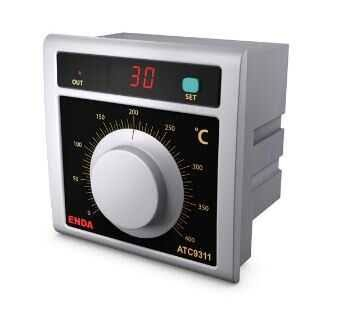

ENDA ATC9311-230-FE400 is a 96x96 mm industrial temperature controller combining analog potentiometer adjustment with a digital temperature display.

The FE400 configuration is intended for a Fe-Const J-type thermocouple and a 0...400 C temperature range. It provides straightforward temperature control for electric heaters, machinery, ovens and industrial heating equipment without requiring complex digital programming.

The required temperature is adjusted directly using the front potentiometer, while the measured temperature is shown on a 3-digit digital display.

The controller supports:

• On-Off control;
• time proportional control;
• J-type Fe-Const thermocouple;
• 0...400 C temperature range;
• 250V AC, 8A resistive relay output with NO+NC contacts.

Main technical specifications

• Manufacturer: ENDA
• Model: ATC9311-230-FE400
• Type: industrial temperature controller
• Adjustment: analog potentiometer
• Display: 3-digit digital temperature display
• Supply: 230V AC, 50/60Hz
• Sensor: J-type Fe-Const thermocouple
• Temperature range: 0...400 C
• Sensitivity: 1 C
• Control: On-Off or time proportional
• Relay output: 250V AC, 8A resistive, NO+NC
• Power consumption: 5VA
• A/D converter: 10 bit
• Dimensions: 96 x 96 x 50 mm
• Panel mounting
• Plug-in terminals
• Front protection: IP60
• Rear protection: IP20
• Operating temperature: 0...+50 C
• Storage temperature: -25...+70 C
• CE marked.

Typical applications include band heaters, cartridge heaters, heated molds, injection molding machines, extruders, thermal presses, industrial ovens and other heating equipment using a J-type thermocouple.
