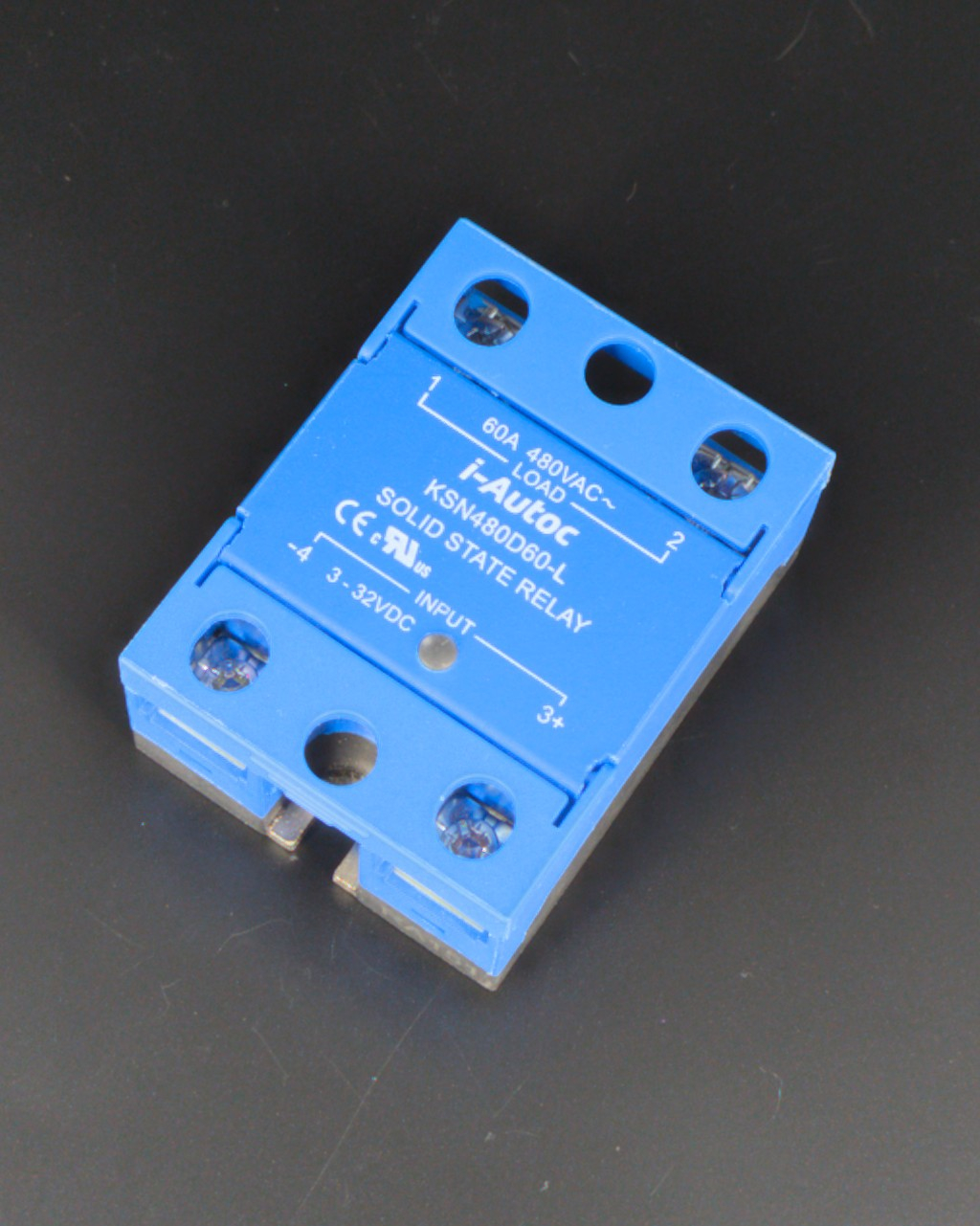

I-Autoc KSN480D60-L Solid State Relay SSR 60A 480VAC, 3-32VDC Control for Electric Heaters
![i-autoc-ksn480d60-l-60a-480vac-solid-state-relay [1]](https://gomagcdn.ro/domains3/rezistentemag.ro/files/product/original/releu-static-ssr-i-autoc-ksn240d25t-l-25a-240vac-comanda-3-32vdc-pentru-rezistente-electrice-copie-668413.jpeg "i-autoc-ksn480d60-l-60a-480vac-solid-state-relay [1]")
Delivery date: Your order is processed quickly. In-stock products are usually prepared and shipped the same day or the next day.
- Description
- Reviews (0)
The I-Autoc KSN480D60-L is a 60A single-phase solid state relay (SSR) designed for switching AC electrical loads. It is particularly suitable for electric heating systems, PID temperature control and industrial automation.
The KSN480D60-L belongs to the 480VAC class, with the KSN 480 series supporting an actual load voltage range of 24-530VAC. The pictured unit uses a 3-32VDC control input. The absence of an "R" in the model designation identifies the standard zero-crossing version, while "-L" identifies the LED indication option.
Main technical specifications:
- Manufacturer: I-Autoc
- Model: KSN480D60-L
- Type: Solid State Relay / SSR
- Configuration: single phase
- Rated current: 60A
- Voltage class: 480VAC
- Load voltage range: 24-530VAC
- Control input: 3-32VDC
- Switching: Zero Crossing
- Output technology: SCR
- LED indicator: yes
- Housing protection: IP20
- Input/output dielectric strength: 4000VACrms
- Series operating temperature: -30°C to +80°C
A correctly sized heatsink is required for high-current continuous operation.
