ENDA EU4430-UV Universal PID Process Controller | RezistenteMag

ENDA EU4430-UV Universal PID Process Controller 90-250V AC, PT100, Thermocouple, 4-20mA and 0-10V, 48x48 mm

new
130,00 EUR
ENDA EU4430-UV is a 48x48 mm universal PID controller with 90-250V AC supply for PT100, thermocouples and 0-20mA, 4-20mA, 0-10V and 2-10V process signals. Features Self-Tune, Soft-Start, analog/SSR output and dual relay outputs.
2 In stock

Delivery date: 1-2 working days stock products

Stock limit
Add to cart
Product Code: EU4430-UV Do you need help? +40 735 955 777
Add to wishlist Request information
  • Description
  • Reviews (0)

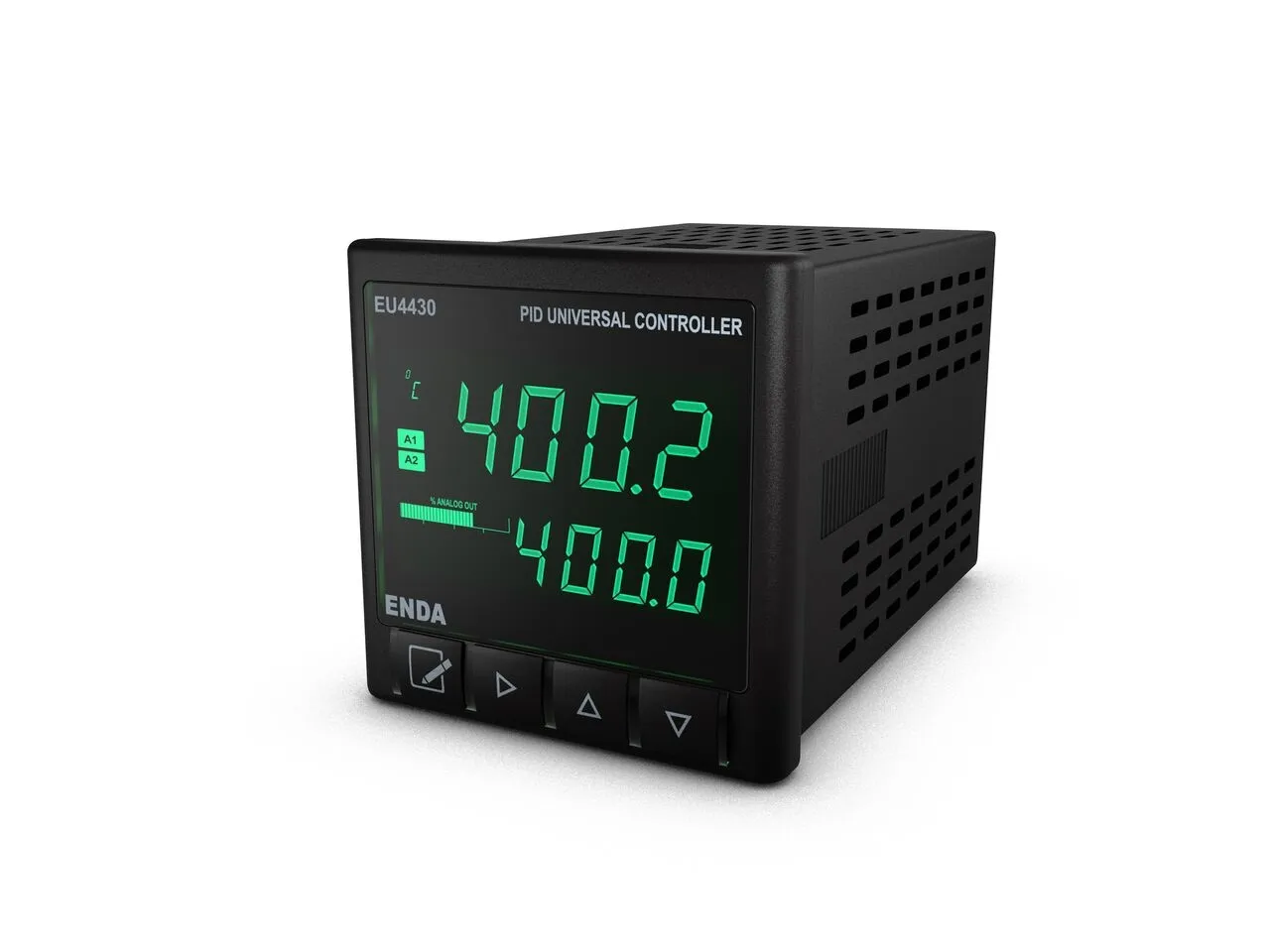

ENDA EU4430-UV is a 48x48 mm universal PID process controller designed for industrial applications requiring temperature control or measurement and control of standard analog process signals.
The UV version operates from 90-250V AC, 50/60Hz. Unlike a conventional temperature controller, the EU4430 supports temperature sensors as well as current, voltage and millivolt process inputs.
Selectable inputs include:
  • PT100
  • J thermocouple
  • K thermocouple
  • T thermocouple
  • S thermocouple
  • R thermocouple
  • 0-20mA
  • 4-20mA
  • 0-10V
  • 2-10V
  • 0-25mV
  • 0-50mV.
Analog inputs can be scaled over a -1999 to 9999 display range, allowing signals from compatible process transmitters to be displayed directly in the required engineering scale.
Selectable control algorithms include On-Off, P, PI, PD and PID, with automatic Self-Tune, Soft-Start and selectable heating/cooling operation.
Control outputs
Selectable ANL/SSR output options include:
  • 0-20mA
  • 4-20mA
  • 24V / 20mA SSR
Two additional relay outputs are provided:
  • C/A2: 250V AC, 2A, NO+NC
  • A1: 250V AC, 2A, NO.
Main technical specifications
  • Manufacturer: ENDA
  • Model: EU4430-UV
  • Type: universal PID process controller
  • Supply: 90-250V AC, 50/60Hz
  • Front size: 48x48 mm
  • Dimensions: 48 x 48 x 87 mm
  • 2x4 digit LCD display
  • Selectable temperature and analog inputs
  • PT100
  • J/K/T/S/R thermocouples
  • 0-20mA / 4-20mA
  • 0-10V / 2-10V
  • 0-25mV / 0-50mV
  • On-Off / P / PI / PD / PID control
  • Automatic Self-Tune
  • Soft-Start
  • Dual set point
  • Configurable digital input
  • Configurable function key
  • Heating / cooling selection
  • 0-20mA / 4-20mA analog control output
  • 24V / 20mA SSR output
  • Dual relay outputs
  • 14-bit A/D converter
  • 100ms sampling
  • IP65 front protection
  • IP20 rear protection
  • 5VA power consumption.
Typical applications include industrial temperature control, heaters, ovens, injection molding machines, extrusion equipment and process systems using 4-20mA or 0-10V transmitters.
RS485 Modbus is an order-code option identified by the RS suffix and is not automatically included in the basic EU4430-UV configuration.
